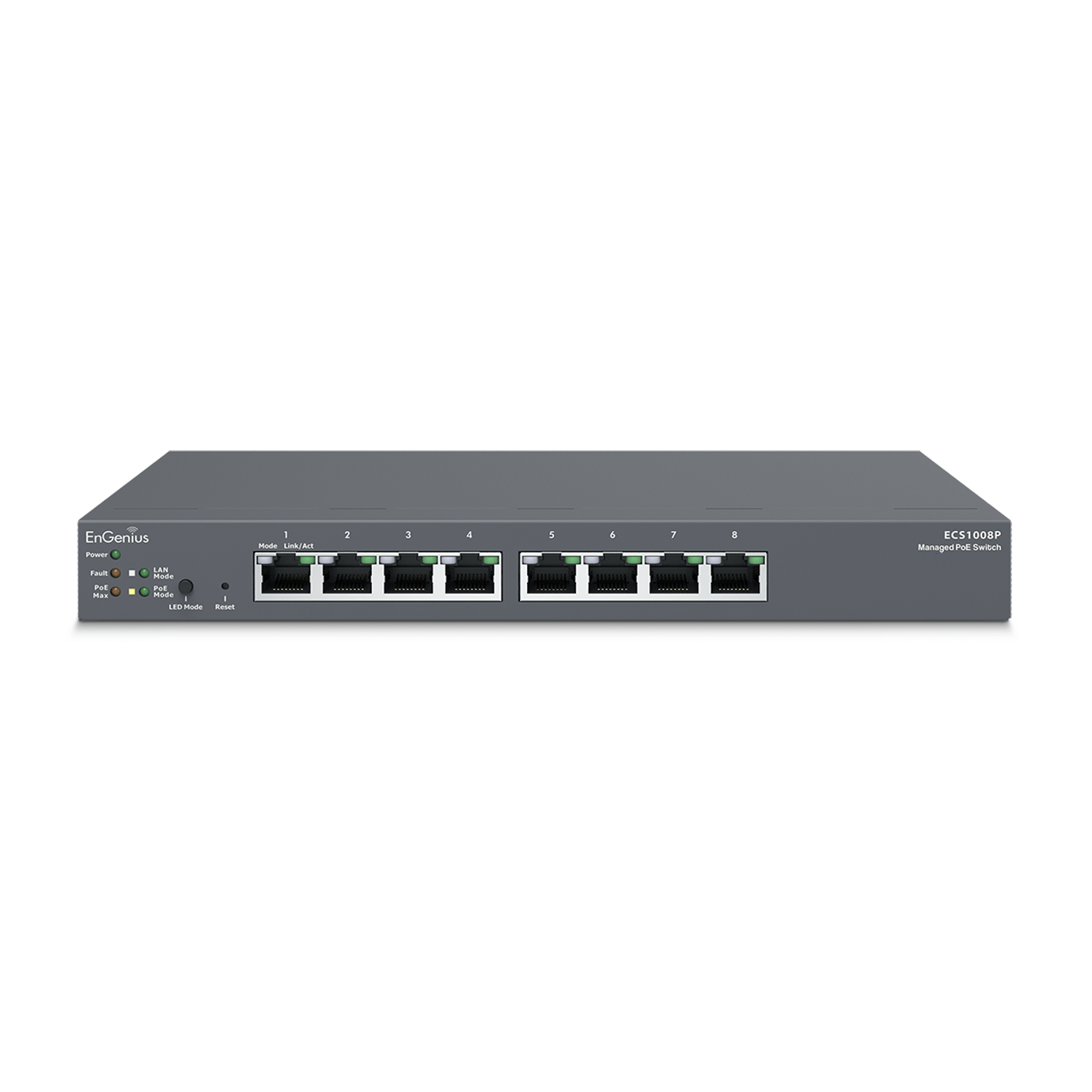

ECS1008P - Cloud Managed 55W PoE 8 Port Network Switch

  • Layer 2 Managed 802.3af Compliant PoE 8 Port Network Switch With Centralized Network Management
  • Managed by EnGenius Cloud Platform
  • (8) 10/100/1000 Mbps Gigabit Ethernet PoE Ports
  • Desktop Model Supports Full-Featured Layer 2 Switching
  • 802.3af Available On All Ports with a Total PoE Budget of 55W

Authorised Distributor

Certificate | Website | Range

»

Buy Now

EL-ECS1008P

Mfr part code: ECS1008P

Overview

The ECS1008P Cloud Managed 55W 8-Port PoE Switch features simplified network configuration, monitoring and management options along with an easy-to-use Web interface. Power compatible PoE devices such as IP cameras, VoIP phones, and APs.

Test Drive EnGenius Cloud demo site

The ECS series switches can be managed by EnGenius Cloud and on-premises ezMaster or can be worked as standalone switches, providing enterprise-class features for simplifying network configuration and monitoring at prices affordable to small and mid-sized businesses. With advanced management, EnGenius Switches enhance network performance to allow companies to focus on growing their business.

Simple — With the easy-to-deploy design, EnGenius Managed Gigabit PoE Switches are operational within minutes. Organizations with limited IT support and budgets can create a reliable, efficiently managed network in no time.

Flexible — Choose the port and physical configuration that meets your network and space requirements for optimal performance. Select the management method most effective for the network – locally manage, remotely and locally manage or Cloud manage.

Reliable — EnGenius Cloud’s reliable Gigabit access for networked devices reduces delays that interrupt communication.

Secure — Keep your network safe with port and server-based security in addition to two-factor authentication and encryption. By setting up event-based alerts, receive push notifications through the EnGenius Cloud app when potential issues arise.

Specification

Test Drive EnGenius Cloud demo site

Cloud Switches Datasheet
Technical Specification
Port Standards 802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 10000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports (8)10/100/1000 Mbps Ports
Performance Switching Capacity: 16Gbps
Forwarding Mode: Store-and-Forward
Flash Memory: 32 MB
SDRAM:256MB
Packet Buffer Memory: 512 KB
Address Database Size: 8,000 MAC Addresses
PoE Capability PoE Standard: Ports 1~8 Support IEEE 802.3af
PoE Capable Ports: All Gigabit Ethernet Ports
PoE Budget 55 W
Power Source AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A
DC Output: 54V/1.67A
Physical Interface
LED Indicators

Device:
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports:

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
L2 Features

802.3ad Link Aggregation

– Maximum of 8 Groups/8 Ports per Group

Spanning Tree Protocol

– 802.1D Spanning Tree Protocol (STP)
– 802.1w Rapid Spanning Tree Protocol (RSTP)
– 802.1s Multiple Spanning Tree Protocol (MSTP)

MAC Address Table

– 8K Entries

Static MAC Address

– 256 Entries

802.1ab Link Layer Discovery Protocol

IGMP Snooping

– IGMP v1/v2/v3 Snooping
– Supports 4094 IGMP Groups
– IGMP per VLAN
– IGMP Snooping Query
– IGMP Snooping Fast Leave

MLD Snooping

– MDL Snooping v1/v2
– Supports 4,094 MLD Groups
– IGMP per VLAN

Jumbo Frame

– Up to 9,216 bytes

802.3x Flow Control

802.3az Energy Efficient Ethernet

VLAN

802.1Q Support

VLAN Group

– Max 4,094 Static VLAN Groups

Voice VLAN

QoS

802.1p Quality of Service

– 8 Queues per Port

Queue Handling

– Strict

– Weighted Round Robin (WRR)

QoS Based on:

– 802.1p Priority
– DSCP

Bandwidth Control

– Port-Based (Ingress/Egress, 64 Kbps~1000 Mbps)

Broadcast/Unknown Multicast/Unknown Unicast Storm Control

Access Control List (ACL)
Layer 2/3
– Supports Maximum 50 Entries (ACL)
– Supports Maximum 256 Entries (ACE)

ACL Based on:

– MAC Address
– VLAN ID
– 802.1p Priority
– Ethertype
– IP Address
– Protocol Type
– DSCP

Security

802.1X

– Guest VLAN
– Port-Based Access Control



Supports RADIUS Authentication

Port Security

– Up to 256 MAC Addresses per Port

Port Isolation

DoS Attack Prevention

BPDU Attack Prevention

Monitoring
Port Statistics
System Log
RMON

Management

Web Graphical User Interface (GUI)
Command Line Interface (CLI)
BootP/DHCP Client/DHCPv6 Client
SSH Server
Telnet Server
TFTP Client
HTTPS

SNMP

– Supports v1/v2c/v3
SNMP Trap
SNTP
Configuration Restore/Backup
Dual Images

Diagnostic

Cable Diagnostic
Ping Test
Trace Route

MIB/RFC Standards

RFC1213
RFC1493
RFC1757
RFC2674
RFC 2863
L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

Static ARP

Static 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries
Environmental & Physical
Temperature Range Operating: 32 to 104° F/0 to 40° C
Storage: -4 to 158° F/-20 to 70 ° C
Humidity (Non-Condensing) 5% – 95%
Dimensions & Weight ECS1008P Device

Weight: 1.5 kg
Width: 105 mm
Length: 240 mm
Height: 27mm
Package Contents (1) ECS1008P Switch
(1) Power Cord
(1) RJ45 Console Cable
(1) Rack Mount Kit
(1) Quick Installation Guide
